MaxConnect for Mac Pro [2006-2008] Optical Drive Bay Disk Mounting Assembly
|
MaxConnect for Apple Mac Pro is an internal hard disk drive mounting
solution, that allows four additional SATA hard disk drives to be
installed in the Optical bay of the Mac Pro system.
MaxConnect for Apple Mac Pro Optical bay internal hard disk expanion
solutioun allows Mac Pro system to utilize two extra SATA DATA channels
(available on the logic board) along with existing Optical Drive,
MaxConnect flexible design allows Mac Pro system to house eight hard
Disk Drives internally.
Six SATA drives installed in the Mac Pro system, two SATA drives
in the Optical bay
along with the Optical Drive and four in the factory bays, two SATA
drives in the Optical Drive bay are connected with two on-board SATA
channels (All six drives have native SATA support),
user can stripe all six drives for maximum DATA transfer rate,or stripe
two drives in the Optical Drive bay for faster boot (2x WD Rapter 10k)
and stripe four
drives in factory drive bays, or any other combination desired.
MaxConnect for Mac Pro Optical Drive Bay Features
1) Two piece construction, Precision machined Aluminum.
2) Slip in Design in the Optical Bay, no modification needed.
3) Optimized for Air Flow.
4) Surface Treated for electrical insulation.
5) Flexible Upgradability and multiple configuration.
6) Install two SATA drives in the Optical Drive bay with the Optical
drive (Optical Drive with 6 total SATA drives, with two on board SATA ports:
No SATA Controller required).
7) Install two SATA drives in the Optical Drive bay with one or two ATA/IDE
Drive(s) (8 internal drives: No SATA Controller required).

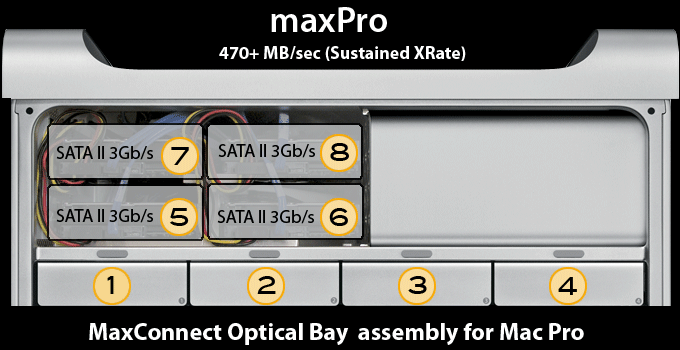

8) Install four SATA drives in the Optical Drive bay (8 total internal
SATA drives: Two or more internal ports SATA Controller required).
MaxUpgrades brings new high performance product MaxConnect SAS/SATA link , this enable user to connect PCI Express SAS/SATA Controllers to the four internal drive bays of the Mac Pro System.
The product offers flexibility in Data speed and data protection, user
can now have redundancy of RAID 5 or RAID 6, with the choice of fastest
high performance prcessor based hardware RAID SAS/SATA Controllers.
Six drives are installed in the Mac Pro system,two SATA II drives
in the Optical bay along with four SATA drives in the factory bays, two
SATA drives in the Optical Drive bay are connected with two on-board
SATA II 3 Gb/sec DATA Channels or SATA II ports, Six drives are striped for the maximum Susbtained DATA transfer rate of 600+ MB/sec.
Eight drives installed in the Mac Pro system, two SATA drives in
the Optical bay along with four SATA drives in the factory bays, two
SATA drives in the Optical Drive bay are connected with two on-board
SATA channels and two IDE/ATA Drive in the Optical Bay ( requires
removal of Optical Drive, mounts on the same Optical drive mount )(All
six SATA drives have native SATA support and ATA/IDE drives is on-baord
IDE channel (native) , user can boot from an IDE/ATA Drive and stripe
all six drives for maximum DATA transfer rate of 600+ MB/sec (Sustained Data Transfer Rate).
MaxSink: HeatSink for Fully Buffered DIMM Memory Module for Mac Pro System
| MaxConnect P/N |
MaxConnect for Mac Pro [2006-2008] System |
| SZ-MCMPOPT01 |
MaxConnect for Mac Pro [2006/2007/2008] System
Compatible with Mac Pro Quad Core Systems (August 2006)
Compatible with Mac Pro Eight Core Systems (April 2007)
Compatible with Mac Pro Eight Core Systems (January 2008)
Base Mount (Aluminum) for the bottom two 3.5 SATA drives or [One 3.5 inch SATA and a 2.5 inch SATA drive or two 2.5 inch SATA drives
Optical Drive Mount (Aluminum) for Optical Drive or Two SATA or IDE Drive
Two SATA Cable
Power Cable for Two SATA Drives
|
| SZ-MCMPOPT02 |
MaxConnect for Mac Pro [2006/2007/2008] System
Compatible with Mac Pro Quad Core Systems (August 2006)
Compatible with Mac Pro Eight Core Systems (April 2007)
Compatible with Mac Pro Eight Core Systems (January 2008)
Base Mount (Aluminum) for the bottom two 3.5 SATA drives or [One 3.5 inch SATA and a 2.5 inch SATA drive or two 2.5 inch SATA drives
Optical Drive Mount (Aluminum) for Optical Drive or Two SATA or IDE Drive
Four SATA Cable
Power Cable for Four SATA Drives
|
| SZ-MCMPOPT04 |
MaxConnect for Mac Pro [2006/2007/2008] System
Optical Drive + Two 3.5 SATA Drives
Optical Drive + One SATA 3.5 inch Drives and One 2.5 in Disk Drive
Base Mount (Aluminum) for the bottom two SATA drives [3.5/2.5]
Optical Drive Mount for Optical Drive Only.
Two SATA Cable
Power Cable for two SATA Drives
|
